Overview

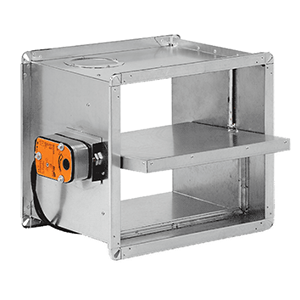

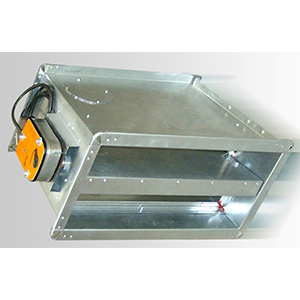

YD343 fire dampers designed to prevent spreading of fire from the nearby zones in ventilating systems. Mounting on rectangular and circular ducts specially fire zones. As mounting on ventilation ducts, the dampers can be used on brick and concrete walls.
Applications
At wall connections as split seperators of air-conditioning systems and also related ducts installed at locations exposing fire. It prevents spreading of any fire in the building into closer locations and helps for extinguishing fire by closing any ventilation systems. An optional alarm switch is used to stop air conditioning ducts.
MATERIAL
Products casing and blades are manufactured from 1,5 mm galvanized sheet and damper handle is manufactured from 5 mm galvanized DKP sheet. Furthermore, fire resistant rockwool with 70 kg/m density and 20 mm thickness is used between the walls of blades
ASSEMBLY
ACCESSORIES
