DIFFUSERS
Overview

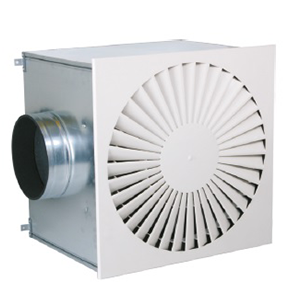

The Turbulance Diffuser produces a high induction radial swirl pattern which promotes rapid temperature equalization and is suitable for VAV applications where high turndown is present. This product can be installed in standard 24 in. x 24 in - 595x595mm. lay-in ceiling grids or surface mounted using a plaster frame.
TWD226R : Turbulance Diffuser with fixed and circular aranged blades and circular front plate.

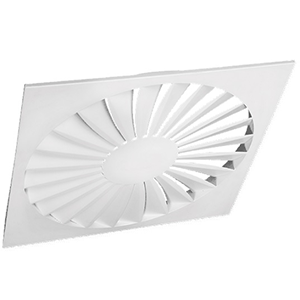

TWD226K : Turbulance Diffuser with fixed and circular aranged blades and square front plate.
Typical Applications

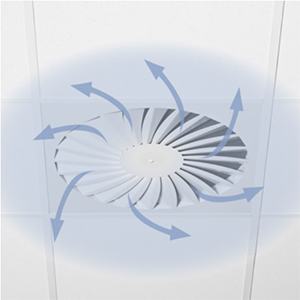

Ceiling turbulance diffusers in air conditioning systems create a swirl to supply air to rooms. The resulting airflow induces high levels of room air, thereby rapidly reducing the airflow velocity and the temperature difference between supply air and room air. Ceiling swirl diffusers allow for large volume flow rates. The result is a mixed flow ventilation in comfort zones, with good overall room ventilation, creating only very little turbulence in the occupied zone..
Construction Options

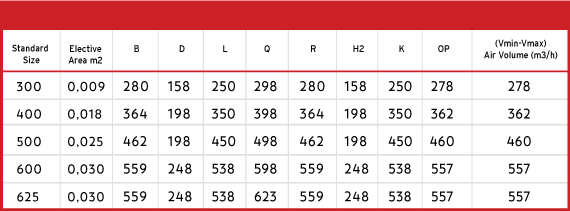

Available Sizes
24 in. x 24 in. US - 595x595mm EU
Mounting
Lay-in
Plaster frame surface mount
Face Pattern
Square slot array
Turbulance diffusers
