DIFFUSERS
Overview

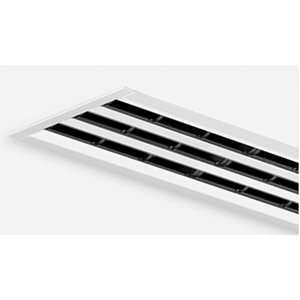

Slot diffusers with 35 mm diffuser face (nominal width) and adjustable air control elements.

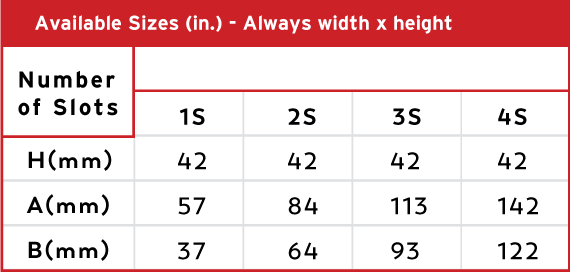

Nominal length from 600 to 1950 mm, 1 to 4 slots
Volume flow rate range 16 – 136 (l/s)/m or 55 – 487 (m³/h)/m
Diffuser face made of extruded aluminium sections
For variable and constant volume flows
Typical Applications

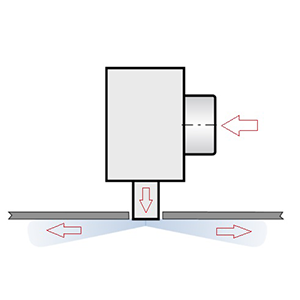

The slot diffuser, types SD35 and SD50 is used for thesupply and return cooled and heated air in facilities such

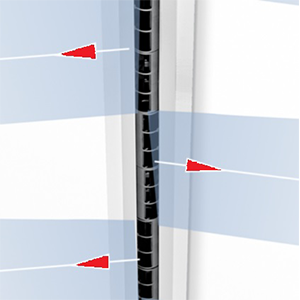

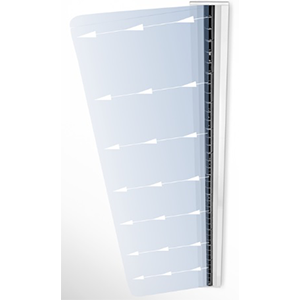

as offices, shops, meeting rooms with heights from approx 2,60m to 4,00m.It is designed for installation in the ceiling and is avaible from 1 to 4 slots. Each slot is individually adjustable and equipped with control blades. The direction of the airflow can be adapted to the required room condition by rotating of control blades. All lengths are avaible so that the diffuser fits ideally in every ceiling system.
Construction

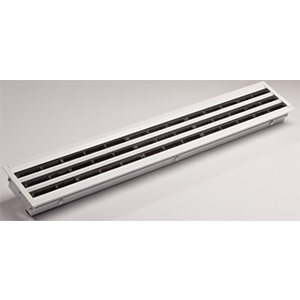

Extruded aluminium frame and plastic air control blades
ROLLER TYPE LINEAR SLOT DIFFUSERS
ROLLER TYPE LINEAR SLOT DIFFUSERS
