LINEAR SLOT DIFFUSERS

Overview

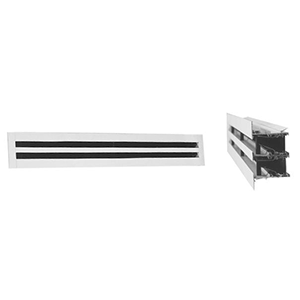

The SD linear slot diffuser is designed to satisfy architectural applications that require continuous lengths without compromising air distribution performance. These linear slot diffusers feature fully adjustable, aerodynamic pattern controllers fabricated from extruded aluminum, and are available in a large selection of frame styles. The SD provides the ideal combination of engineering excellence and architectural appeal.

Typical Applications
The slot diffuser, type SD in used for the supply and return of cooled and heated air in facilities such as offices, shops, meeting rooms,

It is designed for installation in the ceiling or sidewall is avaible from 1 to 4 slots.Each slot is individually adjustable and equipped with 2 deflector vanes of a special design to minimize the internal turbulances. Also one can obtain an ideal air supply pattern adjustable over 180°.All lengths are avaible so that the diffuser fits ideally in every ceiling system..

Construction Options
Models

• Supply (SD-D)

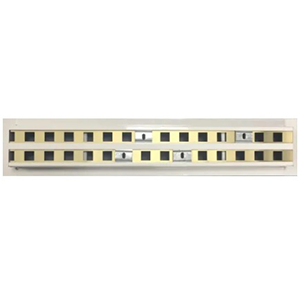

• Return (SD-T)

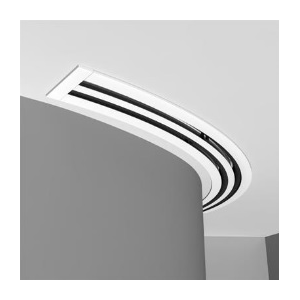

• Curved supply/return (SD-C)

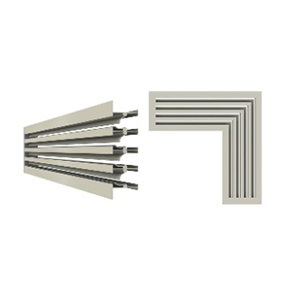

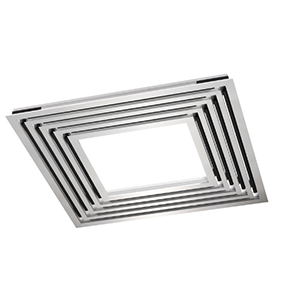

• 4-way Slot Diffuser (SD-4W)

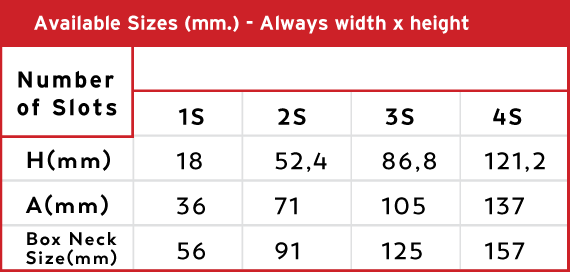

Slot Widths

• Standart 18mm - 3/4 in.

• 12mm - 1/2 in

• 25,4mm - 1 in.
