Overview

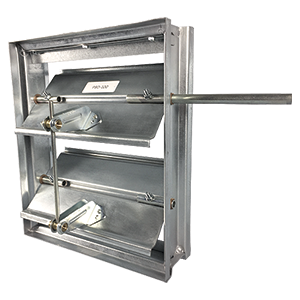

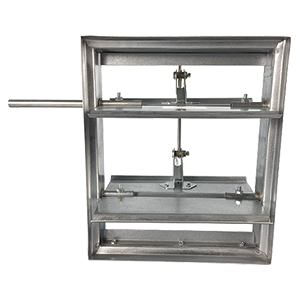

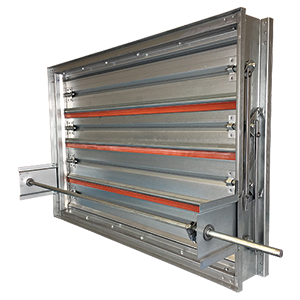

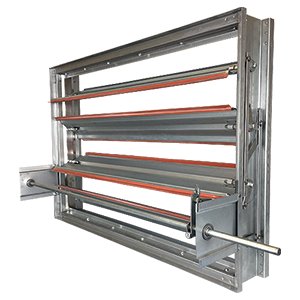

NCA offers several options for galvanized and stainless steel control dampers. The SCD-57 (low leakage version = SCD-LL-57) is NCA’s “go-to” galvanized steel control damper. NCA also has the ability to build control dampers with more custom options with the OBD-106 and PBD-100 such as different gauge steel as well as 304 or 316 stainless steel. NCA also has the ability to fabricate round control dampers as well as provide factory mounted controls on any control damper made.
Models
Square/Rectangular Control Dampers:
SCD-57
SCD-LL-57 – Low Leakage
SCD-LL-HD-57 – Low Leakage Heavy Duty
SCD-AF – Low Leakage Airfoil Blades
SCD-IB-59 – Insulated Aluminum Blades
PBD-100 – Exposed Linkage Parallel Blade
PBD-100-INS – Insulated Blades
OBD-106 – Exposed Linkage Opposed Blade
Round Control Dampers:
SCD-RD-88 – True Round
SCD-RD-LL-88 – Low Leakage
PBD-100RS – True Round
PBD-100RM – Parallel Multi-Blade Round
OBD-106R – Opposed Multi-Blade Round
ID and ID-SS – Round Iris Dampers
Options
-
Parallel or Opposed blade orientation available on all multi-blade models
-
Low leakage (blade and jamb seals) optional on most models
-
304 or 316 Stainless steel construction (PBD, OBD, ID-SS)
-
Heavier gauge steel (PBD, OBD)
-
Formed aluminum construction (PBD/OBD)
-
Wide variety of pneumatic or electric (24V, 120V, 230V) actuators that can be factory mounted or shipped loose
-
Square/rectangular, round or oval transitions
