DIFFUSERS
Overview:

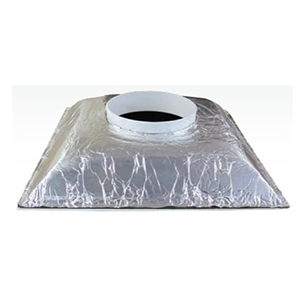

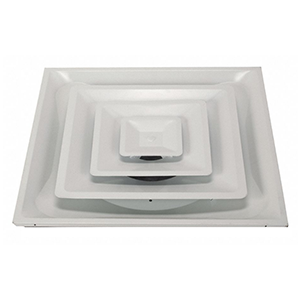

The Square Cone Diffuser (S3CD) features a highly engineered, aerodynamic backpan and cone assembly that creates a horizontal 360° radial air pattern. The S3CD promotes rapid mixing, temperature equalization, and velocity reduction with industry-leading low pressure drop and sound generation. Ideal for VAV applications with high turndown rates, the S3CD maintains a consistent, stable air pattern even as air volume is reduced, minimizing dumping and drafts.
Typical Applications
The Square Cone Diffuser, or S3CD, is ideal for use in ceiling applications and is compatible with most standard ceiling styles.
Construction Options
Material
Steel (S3CD)
Aluminum (AS3CD)
Core
3 cone

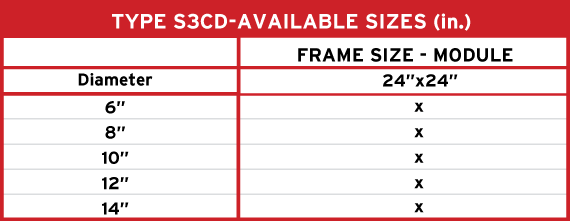

Size
24 in. x 24 in. T-bar lay-in
