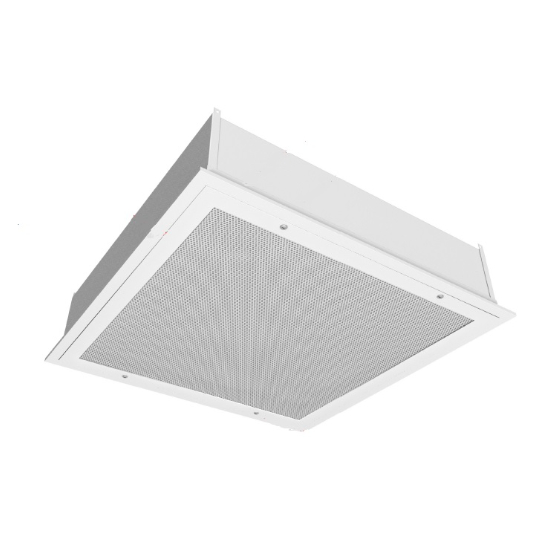

Laminar Flow Diffusers

Overview

Laminar Flow Diffusers have been engineered to provide a vertical projection of low velocity supply air. The laminar flow diffuser introduces clean supply air without the entrainment of contaminated air in the space due to its low velocity..

Typical Applications

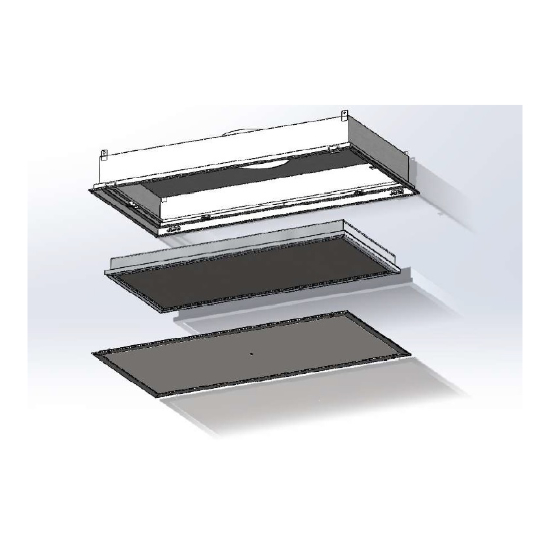

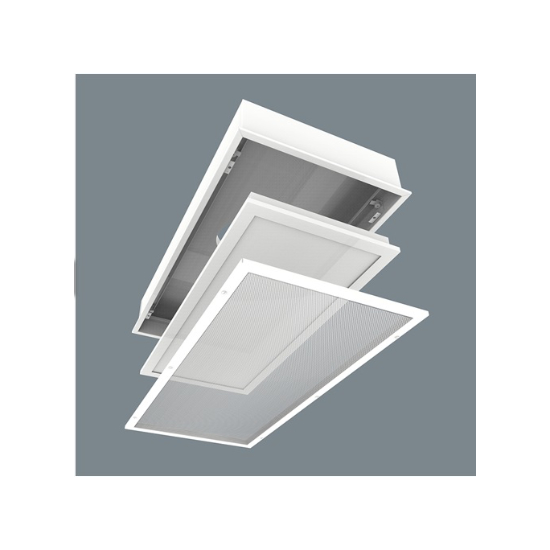

Laminar Flow - With Gel Seal HEPA Filter Cell

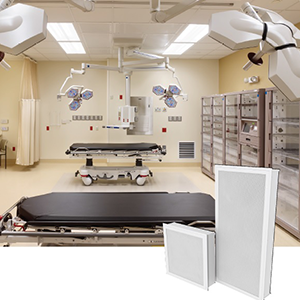

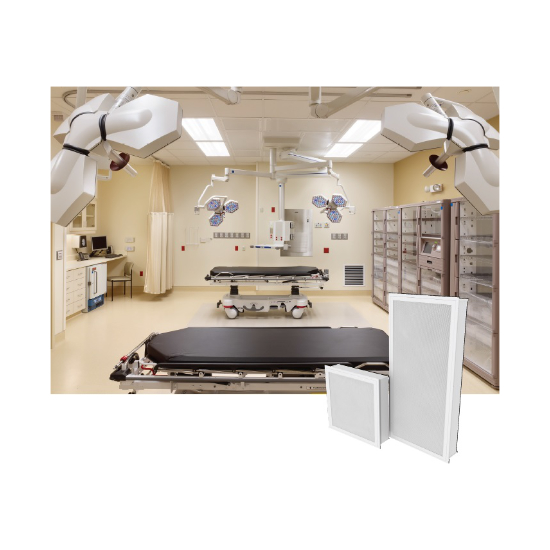

The HPL-GS is engineered to supply air in critical environments.  The HPL-GS provides a means of controlling particle contamination within the room by providing a unidirection vertical "piston" of conditioned air.  Applications include clean room, laboratories, hospital operating rooms, and patient isolation rooms.

• 2.75" thick pleated filter element allowing the overall housing to be maximum of 7" high
• Gel Seal Filter Frame with Knife Edge Flange

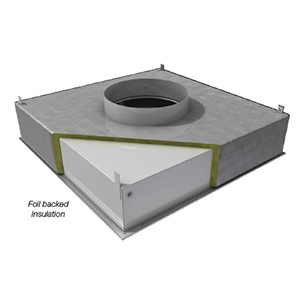

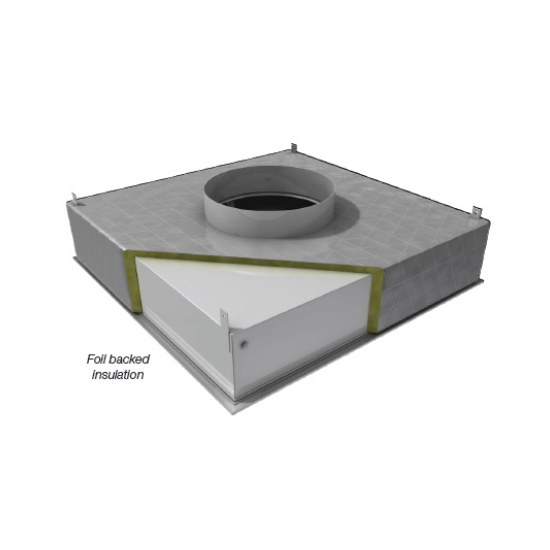

• Airtight Filter Housing
• Available in aluminum, cold-rolled steel or stainless steel construction
• Optional Gel Seal HEPA filters available

Filters

Available filter efficiencies:

HE           95% at 0.3 μm
HEPA      99.99% at 0.3 μm
ULPA      99.999% at 0.12 μm
